Logic Pro Compressor Settings: Threshold, Ratio, Attack, Release
A practical compressor setup path that starts with gain reduction and ends with a level-matched bypass check.
A compressor changes movement. It can hold a vocal in place, smooth bass, shape drum attack, or make a performance feel smaller if you push it too hard.
The safest way to learn Logic Pro Compressor is to set one control at a time and level-match the bypass. If the compressed version is simply louder, you have not judged the compression yet.
Quick answer
If you are in Logic Pro right now, do not start by opening every menu. Set the track level before adding Compressor. Choose the loudest section for setup. Then move through the four checks below in order.
The order matters because mixing work usually breaks earlier than it looks. A wrong track, region, input, bus, or range can make the last setting look guilty when it is only receiving a bad setup.
Use this as the short version before reading the full guide.
- Lower threshold until peaks react: Threshold decides when compression starts.
- Choose ratio by job: A gentle vocal often starts around 2:1 to 4:1.
- Shape attack for transients: Fast attack grabs earlier.
- Set release to breathe with the part: Release should recover naturally before the next phrase or hit.
Before you start
- Set the track level before adding Compressor.
- Choose the loudest section for setup.
- Watch gain reduction, but listen harder than you look.
- Match output level before deciding.
A clean pass from start to finish
Run this as one clean pass, not as disconnected tricks. Begin with the first checkpoint: lower threshold until peaks react. Then move to the second: choose ratio by job. Those two checks make the project readable before you make detailed changes.
After that, use the next two checkpoints as the decision stage: shape attack for transients, then set release to breathe with the part. This is where you stop guessing and let the screen show whether the sound, timing, routing, or edit is behaving the way the song needs.
If you change more than one thing at once, write down what you changed or save a new version. Logic Pro is fast enough that a session can go from fixed to confusing in under a minute. Small, named moves are easier to trust later.

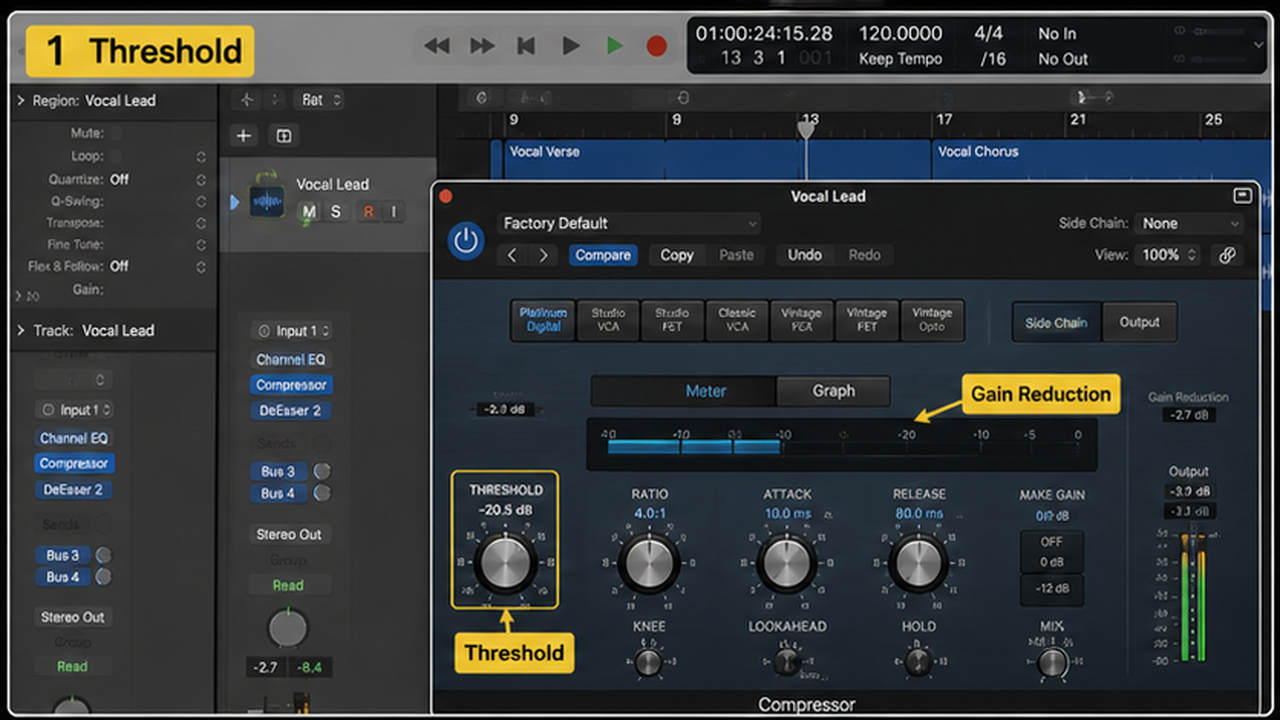

1. Lower threshold until peaks react
Threshold decides when compression starts. Play the loudest useful section and lower threshold until the compressor catches the moments you want controlled.
If the compressor never releases, threshold may be too low or release may be wrong.

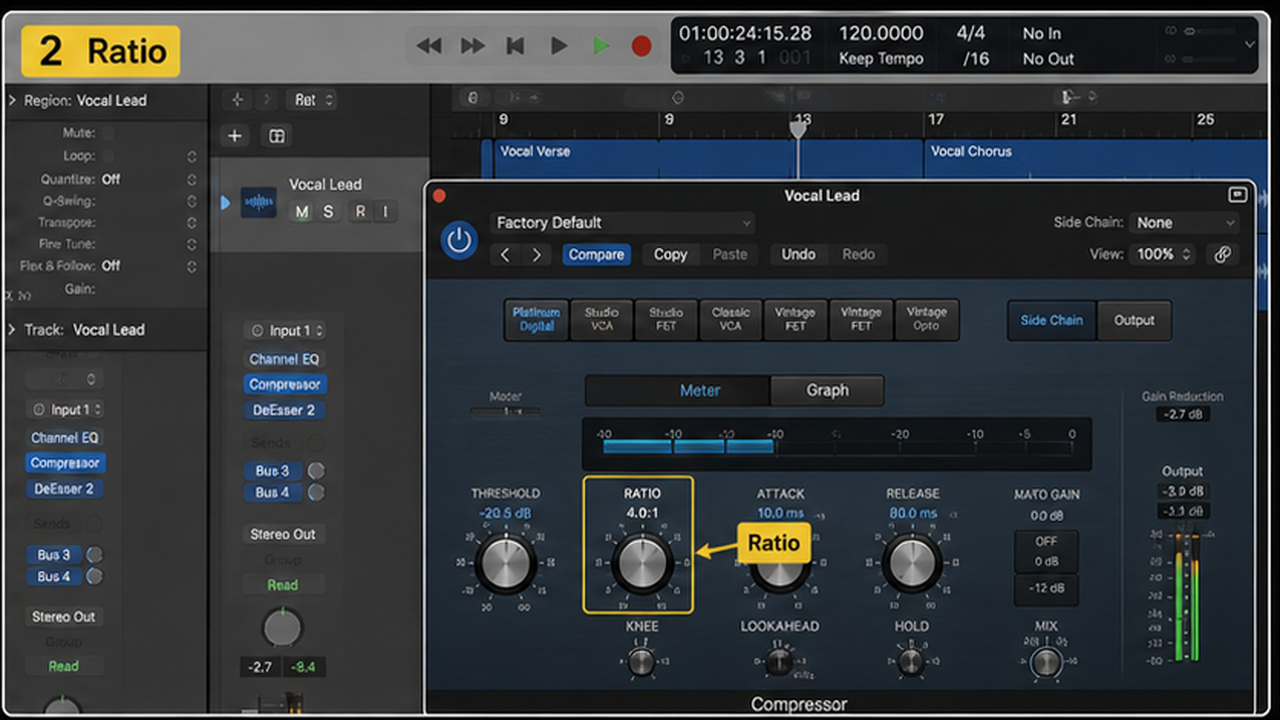

2. Choose ratio by job
A gentle vocal often starts around 2:1 to 4:1. Stronger control may need more, but high ratios can make the source feel pinned.
Use enough ratio to solve the problem, not enough to see exciting meters.

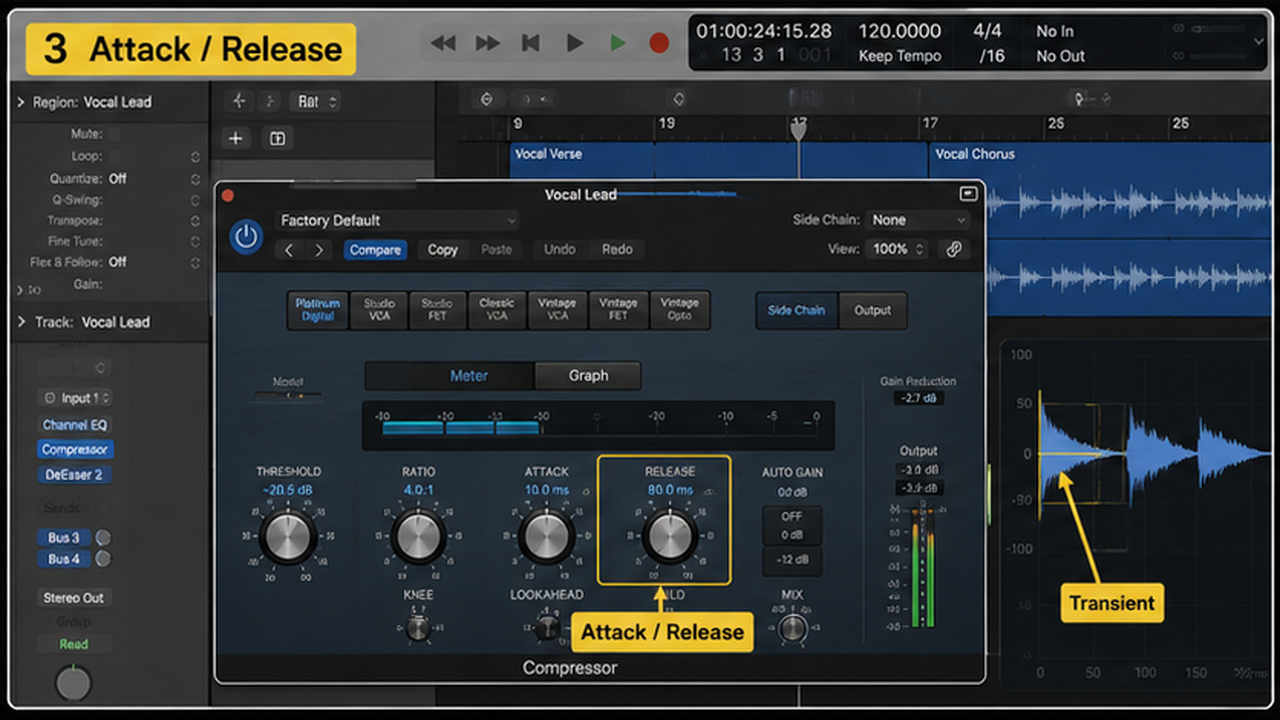

3. Shape attack for transients
Fast attack grabs earlier. Slower attack lets consonants, pick attack, or drum hits through. The right choice depends on whether the transient helps or hurts.
If a vocal loses clarity after compression, the attack may be too fast.
4. Set release to breathe with the part
Release should recover naturally before the next phrase or hit. Too fast can pump. Too slow can make the next word smaller.
Loop a busy section and adjust until the gain reduction moves musically.
Decision table
| Control | What it changes | Common starting point |
|---|---|---|
| Threshold | When compression starts | Set from loudest phrases |
| Ratio | How hard it compresses | 2:1 to 4:1 for many vocals |
| Attack | How quickly it grabs | Slow enough to keep clarity |
| Release | How quickly it lets go | In time with the phrase |
Checkpoint table
| Checkpoint | What should be true | If it is not true |
|---|---|---|
| Lower threshold until peaks react | If the compressor never releases, threshold may be too low or release may be wrong. | Back up and fix the setup before continuing. |
| Choose ratio by job | Use enough ratio to solve the problem, not enough to see exciting meters. | Do the smaller edit instead of rebuilding the whole part. |
| Shape attack for transients | If a vocal loses clarity after compression, the attack may be too fast. | Check what is selected, then repeat the change deliberately. |
| Set release to breathe with the part | Loop a busy section and adjust until the gain reduction moves musically. | Use the mixer or playback context as the final judge. |
Before and after check
Before the change, make one short playback pass and name the exact problem in plain words: late entrance, dull vocal, wrong input, harsh consonant, missing output, messy routing, clipped bounce, or whatever the session is actually doing. If you cannot name it, you are not ready to fix it yet.

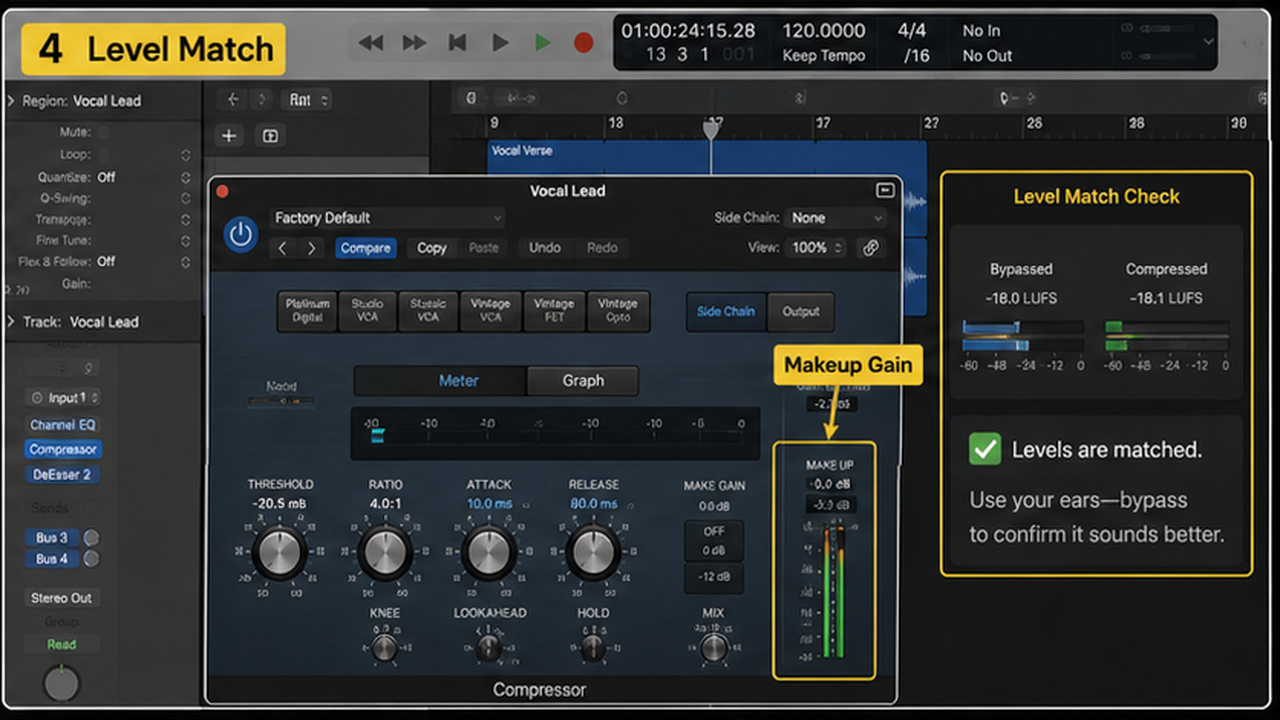

After the change, play the same section at the same volume. Louder almost always sounds better for ten seconds, so level-match when you are judging mixing decisions. The useful question is not whether the edit is impressive. It is whether the part sits better without pulling attention away from the song.
Check the edges of the fix. In Logic Pro, a repair can solve the center of a problem while damaging the bar before it, the breath after it, the bus return, or the export tail. A good before/after pass includes a little lead-in and a little space after the moment you changed.
If the after version only feels better while you are watching the screen, take a break and listen again without touching the mouse. Visual neatness is helpful for editing, but the final test is still playback. Keep the version that makes the project easier to finish.
What not to chase yet
Do not chase polish before the basic workflow is stable. For this topic, the first two checkpoints have to make sense before you worry about the smaller details: lower threshold until peaks react, then choose ratio by job. Fancy settings cannot rescue a confused source.
Do not copy numbers blindly from another session. Buffer sizes, EQ points, quantize strength, compression timing, send levels, and bounce choices all depend on the material. Use examples as starting points, then move the control until this project sounds and behaves correctly.
Do not keep editing because the tool is available. Logic Pro gives you enough control to over-fix almost anything. Stop when the problem is gone and the performance still feels like a performance.
What good looks like
The mixing workflow is working when you can explain what changed without pointing at a random plugin window. If the fix depends on luck, the session is not stable yet.
After the main pass, close the editor you were using and play the section from a few bars before the change. A good edit survives context. A bad edit only sounds correct when the screen is zoomed into the problem.
Keep one version before the major change and one version after it. Logic Pro projects can move quickly, and a clean fallback saves more time than trying to reverse a dozen tiny edits later.
If it still feels wrong
If the result still feels wrong, return to the signal chain. Ask whether the source is clean, whether the region edit is correct, whether the track is routed where you think it is, and whether the mixer confirms what your ears are telling you.
Do not add another processor just because the current one did not solve the issue. In Logic Pro, many problems are earlier than the plugin slot: wrong input, messy region boundaries, doubled monitoring, over-quantized MIDI, or a bus that is louder than the dry track.
When you get stuck, simplify the project. Mute everything except the source and the one track or aux it depends on. If the problem disappears, bring the session back one group at a time until the conflict shows itself.
Common mistakes to avoid
- Judging compression while the output is louder. Fix it by returning to the first visible control in the chain and confirming it before you touch a plugin.
- Using fast attack on everything. Fix it by listening to the section in context, then changing only the thing that fails the playback test.
- Chasing constant gain reduction. Fix it by saving a version, making the edit smaller, and checking whether the song still feels natural.
- Compressing a bad recording instead of fixing the take. Fix it by simplifying the session view until the routing, region, or setting is obvious again.
Practice pass
Put Compressor on a vocal and aim for only 3 dB of gain reduction on peaks. Match output level. If you cannot hear the difference, exaggerate the settings, learn the sound, then back them down.
When to move on
You are done when the change helps the song at normal listening volume. Not when the screen looks tidy, not when every meter behaves perfectly, and not when the analyzer is pretty.
Print or bounce a short reference after the fix. Listening outside the edit screen catches problems that are invisible while you are staring at regions, lanes, and meters.
Sources checked
This draft was checked against current Apple Logic Pro documentation and release notes before writing. Source links used for version-sensitive claims on May 16, 2026:
FAQ
What ratio should I use for vocals?
Start around 2:1 to 4:1. Use more only when the vocal needs stronger control.
How much gain reduction is normal?
For many vocals, 2 to 6 dB on peaks is a useful range. The right amount depends on performance and style.
What does attack do on a compressor?
Attack controls how quickly compression starts after the signal crosses the threshold.
What does release do?
Release controls how quickly compression lets go after the signal falls back down.
